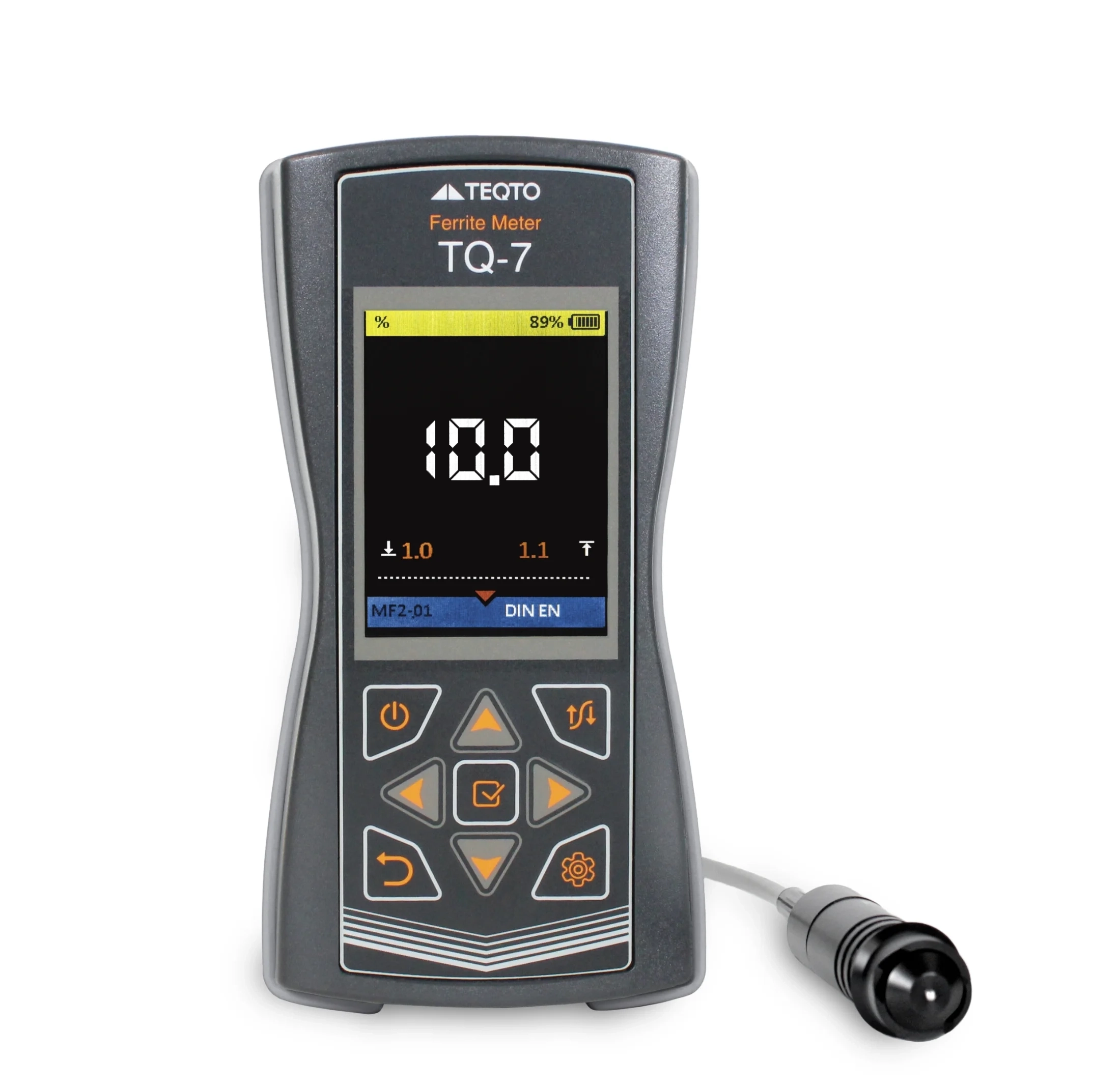

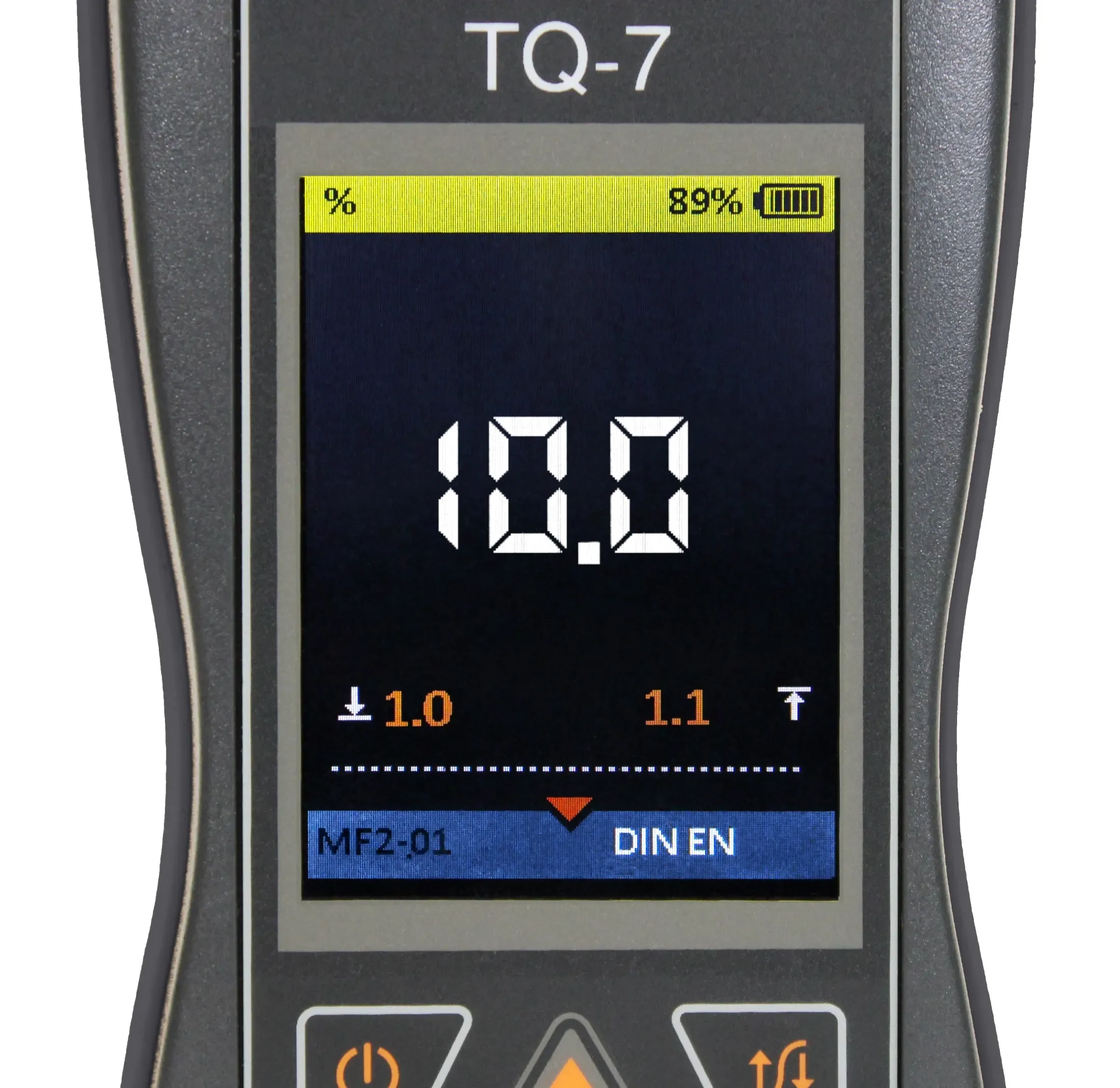

TQ-7 - Ferrite meter

Ferrite measurement is a vital non-destructive testing (NDT) technique used to determine the amount of ferrite present in austenitic and duplex stainless steels. Ferrite content significantly impacts the mechanical properties, corrosion resistance, and weldability of these materials. The most common method employed for ferrite testing is magnetic induction. This process uses a probe with an exciter coil that generates a low-frequency magnetic field. When placed near a steel sample, this magnetic field is amplified by ferrite grains, and the resulting voltage change is measured to determine the ferrite content.

Maintaining the right balance of ferrite is crucial. If the ferrite content is too low, it can lead to solidification cracking, particularly during welding. On the other hand, excessive ferrite can reduce the material’s corrosion resistance and negatively affect mechanical properties. By assessing ferrite levels, industries can ensure that the material is tough, resistant to cracking, and maintains its intended performance, especially in challenging environments.

Applications of Ferrite Testing

Ferrite testing is widely used across several industries, including oil and gas, chemical processing, power generation, mining, and manufacturing. It is especially important in environments where corrosion resistance and structural integrity are crucial. For example, in oil refineries and chemical plants, equipment and piping made from stainless steel are often exposed to harsh, corrosive substances. Maintaining the proper ferrite content ensures that these components can withstand such conditions.

In terms of objects, ferrite measurement is applied to a variety of critical equipment, including:

• Welds and cladding: Ensuring that weld seams in stainless steel pipes and tanks have the correct ferrite content to prevent cracking during cooling and operation.
• Pressure vessels and tanks: These large industrial containers, used for storing liquids or gases, require accurate ferrite content to ensure their strength and longevity.
• Heat exchangers: Used in power generation and petrochemical industries, where the integrity of stainless steel components is key to safe and efficient operation.
• Piping systems: Commonly found in power plants, chemical plants, and oil refineries, where ferrite testing helps prevent material failure due to stress or corrosion.

Ferrite testing is particularly beneficial for stainless steel grades like 300 series austenitic stainless steel (e.g., 304/L, 316/L) and duplex stainless steels, where the ferrite percentage directly impacts toughness, ductility, and resistance to corrosion and cracking.

Importance and Benefits of Ferrite Testing

Ferrite testing is quick, affordable, and provides immediate results, making it an essential part of quality control in industries where material failure can result in costly downtime or hazardous situations. By maintaining the correct ferrite content, companies can enhance the performance, safety, and reliability of their stainless steel components, avoiding issues like premature failure, high maintenance costs, or safety risks due to structural weaknesses.

In summary, ferrite testing is a critical NDT method used across a variety of industries to assess and control the material properties of stainless steel, ensuring long-term durability, reliability, and safety.
